Mercruiser Alpha 1 Trim Cylinders *Hoses *Parts

Trim Rams / Hydraulic Lines / Mercruiser trim hoses for the
R/MR/Alpha one Models years 1983 to 1990

  • GLM Mercruiser sterndrive parts for R/MR/Alpha one trim cylinder
  • Compatible with cylinder and hose for Mercruiser models with serial numbers 6225577 and up
  • Hydraulic power trim lines / hoses manufactured by Sierra Marine
  • Ram bushings and trim connector junction block replacements
  • Front and rear ram installation kits include anchor pins
  • Tech support drawings and cylinders Search by part number or description here

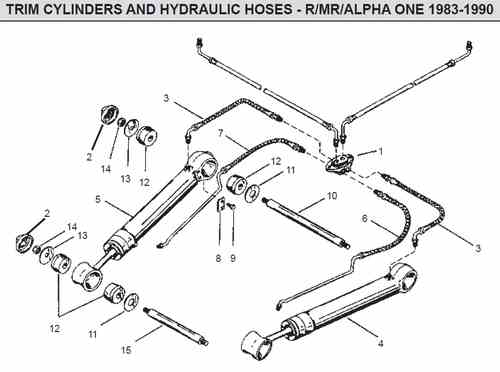

Alpha 1 Mercruiser Trim Cylinder Breakdown

Alpha 1 Mercruiser Trim Cylinder Breakdown

For Gen II models (years 1991 and up, serial numbers 0D469859 and up), click here

21970 Connector housing kit 98825A4
21970 Connector housing kit 98825A4

Item 1

P/N 21970 Trim cylinder to connector junction block kit. The housing has 2 inputs and 4 outputs. Trim cylinder to connector includes 2 stainless steel mounting bolts and gasket. Replaces 98825A4 $69.99

26480 Cap 19-14842
26480 Cap 19-14842

Item 2

P/N 26480 End cap - covers bushing and nut. Replaces 19-14842 $4.95

18-2116
18-2116

Item 3

P/N 18-2116 Power trim cylinder hose replaces OEM number 32-99904 $52.15

26400
26400

Item 4A

P/N 26400 Cylinder assembly - starboard - 15-9/16" length. Replaces 98704A3 $394.99

98703A3

Item 5A

P/N 26410 Cylinder assembly - port - 15-9/16" length.
Replaces 98703A3 $394.99

14034A3
14034A3

Item 4B

P/N 26500 Ram assembly - starboard - 16-3/16" long. Replaces 14034A3 $399.99

14035A3
14035A3

Item 5B

P/N 26510 Ram assembly - port - 16-3/16" long. Replaces 14035A3 $399.99

18-2136
18-2136

Item 6A

P/N 18-2136 Trim cylinder hose replaces OEM 32-864589 $68.15

18-2137
18-2137

Item 7A

P/N 18-2137 Trim cylinder hose replaces 32-864588 $68.15

32-864960
32-864960

Item 6B

P/N 18-2114 Hose. Replaces 32-864960 $64.15

32-864959

Item 7B

P/N 18-2115 Hose. Replaces 32-864959 $64.15

21370

Item Kit-1

P/N 21370 Ram bushing kit (front). Includes 4 bushings, 4 washers, 2 end caps and front anchor pin. Replaces 17-14873A1 $113.95

26330 Alpha 1 Gen 2 Rubber power trim ram bushing
26330 Alpha 1 Gen 2 Rubber power trim ram bushing

Item 12

P/N 26330 Rubber bushing (4 units) - (note: 4 are required per ram) Replaces 23-99291 $29.99

21380
21380

Item Kit-1

P/N 21380 Ram bushing kit (rear). Includes 4 bushings, 4 washers, 2 end caps and rear anchor pin. Replaces 17-14872A1 $88.95

Please contact order desk for used
  • Mercruiser trim pump
  • Alpha One trim pump
  • Power trim cylinder that may be in stock
    Keeping in mind there are rebuild kits for the cylinder.
