OMC parts drawing *400-800 upper gearcase

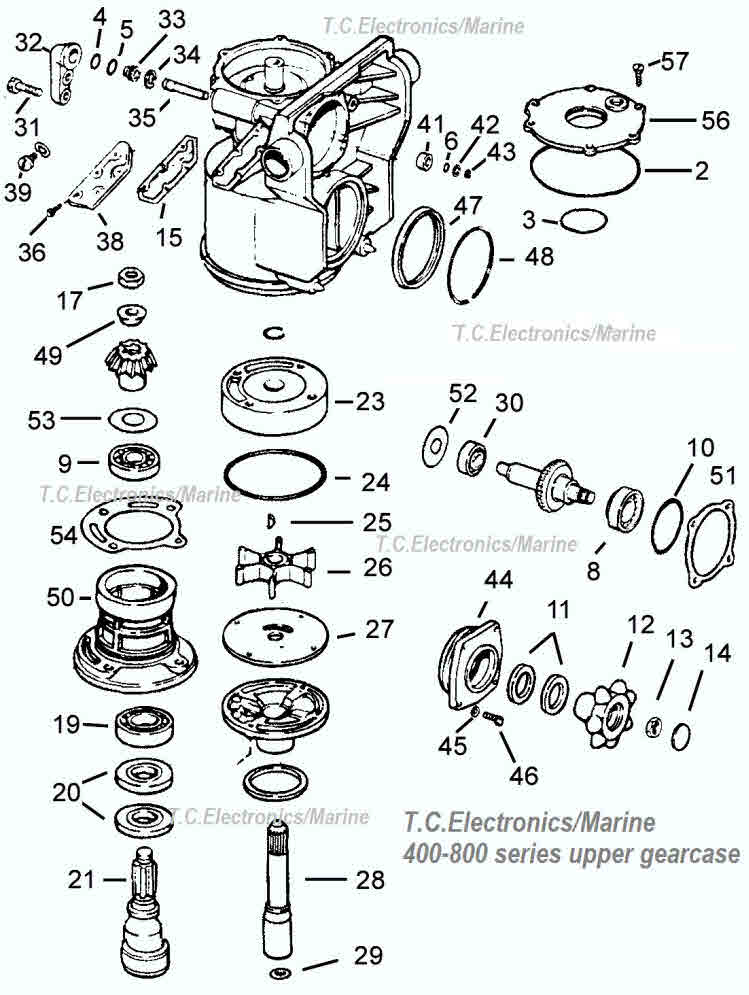

Stern drive parts drawing 400/800 series Stringer upper gearcase

Tech support 400-800 series gearcase

OMC 800 400 Stringer stern drive parts drawing upper gearcase

OMC 800 400 Stringer stern drive parts drawing upper gearcase



27000 Aftermarket OMC stern drive case
27000 Aftermarket OMC stern drive case
P/N 27000 Upper gearcase assembly OEM 982226 $999.09
GLM Marine aftermarket low profile upper gearcase

rebuilt
rebuilt
Click here for details on our remanufactured units Rebuilt upper gearcase case assembly parts with new gears, drive shaft, water pump shaft, housing, bearings, ball bear, seals and water pump housing with total parts value of $1267.09

21/16
5.7 liter Ford / 5.8 liter Chevy $1595.09 after trade in

21/17
5.0 liter 302 Ford / 305 Chevy $1595.09 after trade in

21/18
All 4 cylinder $1595.09 after trade in

21/19
4.3 Liter 262 V6 or 165 hp inline six cylinder $1595.09 after trade in

21/20
3.8 Liter 229 V6 $1595.09 after trade in

22510 21-16 gear set
22510 21-16 gear set
Item 7
P/N 22510 Gear set 5.7 liter V8 - 21/16 / 982261 $829.15

P/N 22512 Gear set 5.0L V8 - 21/17 / 982259 $749.15

P/N 22530 Gear set 3.8 liter V6 - 21/20 / 982835 $699.15

P/N 22514 Gear set 4.3. V6 or 165 hp. in line 6 cylinder engines - 21/19 / 984262 $699.15

21544
21544
Item 8
P/N 21544 ball gear retainer / 382212 $59.15

21545 Bearing
21545 Bearing
Item 9
P/N 21545 400-800 Bearing OEM 379585 $76.00

22020

22020

22050 Ball gear kit
22050 Ball gear kit
Item 12
P/N 22020 Upper housing ball gear / 908069 $130.15
For complete ball gear kit, click here
upper gearcase parts removal and shimming

87650 1973-1985 seal kit

87650 1973-1985 seal kit

Parts included in seal kit:

3 O-ring 82250
4 O-ring 82250
4 O-ring 82140
5 Quad ring 42140
6 Quad ring 41120
10 O-ring 82350
11 Oil seal 86080
13 Nut 22330
14 Cover 22030
15 Gasket 34180
16 Gasket 33050
17 Lock nut 22310
18 O-ring 82360
20 Oil seal 86090
22 Shaft seal 86100
24 O-ring 82520
29 O-ring 80220

P/N 87650 Seal kit / 982949 $53.09

87651
87651
P/N 87651 Seal kit 1968 to 1972 with press on ball gears / 981799 $49.00

21546
21546
Item 19
P/N 21546
Bearing / 382165 $24.15

22412 low profile
22412 low profile
Item 21
P/N 22412 Low profile / 909121 $144.15

12390
12390
Item 23
P/N 12390
Pump housing part included in water pump kit OEM-983298 $45.09

89595 key
89595 key
Item 25
P/N 89595 Key / 308928 $6.09

89760 Impeller
89760 Impeller

Item 26
P/N 89760 800 series impeller removal & installation video OEM-379475 $25.00
See our complete impeller kit here
