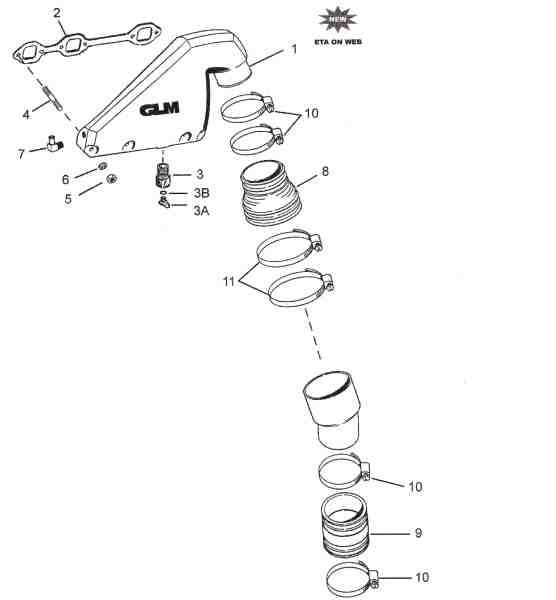

OMC exhaust manifold-riser (1 unit) V6

GLM Marine aftermarket one piece
Cobra GM 262 CID V6 engine

  • 4.3 liter model 800 series GM 262 CID V6 for years 1986 to 1990
  • GLM aftermarket OMC manifold, exhaust elbow and gaskets
  • Clamp, studs and exhaust hose.


manifold parts

manifold parts

32170 Manifold Gaskets
32170 Gaskets

Item 2
P/N 32170
gasket OEM 3853412



Item 2
P/N 32170 gasket OEM 3853412



Item 3
P/N 13980
Water drain

13992 Drain plug
13992 Drain plug

Item 3A
P/N 13992
Drain plug kit

80140 o ring
80140 o ring

Item 3B
P/N 80140
o rings OEM 304174



Item 4
P/N 22485
stud OEM 909222

21248 Flange Serrated Nut

21248 Flange Serrated Nut

Item 5
P/N 21248
nut OEM 908700

21493 Lockwasher
21493 Lockwasher

Item 6
P/N 21493
Lock washers OEM 3852002

13970 Elbow Fitting

13970 Elbow Fitting

Item 7
P/N 13970
elbow fitting OEM 3852538



Item 8
P/N 89228
hose OEM 912328

89230 Hose
89230 Hose

Item 9
P/N 89230 hose
OEM 3852742

01090 Clamp
01090 Clamp

Item 10
P/N 01090
clamp OEM 3852604

01200
01200

Item 11
P/N 01200
clamp OEM 984387
