OMC exhaust manifold-elbow 4.3L Cobra

GLM aftermarket parts for 4.3 liter, GM 262 CID V6 engine years 1991 & up

Exploded view OMC parts drawings click here
Search by OEM service number or description here

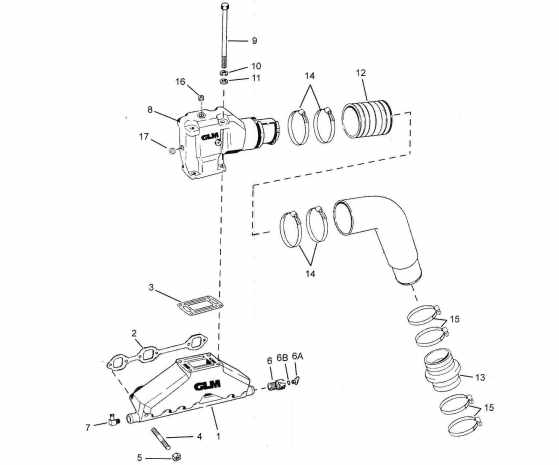

Manifold 4.3 liter GM 262CID V6
 4.3 liter GM 262CID V6

51480 OMC V6 manifold

51480 OMC V6 manifold

1
P/N 51480
4.3 Liter OMC V6 1991 and up GM 262 CID exhaust manifold assembly. Included in kit are item numbers 2, 4, 5, 6, 6A, 6B and 7 OEM 3857656. $250.00

32170 Manifold Gaskets
32170 Gaskets

2
P/N 32170
Gasket (2 units) OEM 3853412

33810 Gasket
33810

3
P/N 33810
Gasket- Exhaust Elbow (1 unit) OEM 3850496

22487 Stud
22487 Stud

4
P/N 22487
Stud (2 units) OEM 3852467

21248 Flange Serrated Nut
21248 Flange Serrated Nut

5
P/N 21248
Nut (5 units) OEM 3853404

13982 Straight Fitting
13982 Straight Fitting

6
P/N 13982
Straight fitting kit

13992 Drain plug
13992 Drain plug

6A
P/N 13992
Drain plug kit (1 unit)

80140 o ring
80140 o ring

6B
P/N 80140
O Ring (5 units) OEM 304174

13970 Elbow Fitting
13970 Elbow Fitting

7
P/N 13970
Elbow fitting OEM 3852538

51330 elbow assembly
51330 elbow assembly

8
P/N 51330
Exhaust elbow or riser OEM 3857944 $198.00

22316 Screw
22316 Screw

9
P/N 22316
Screw OEM 3852830

21493 Lockwasher
21493 Lockwasher

10
P/N 21493
Lockwasher (10 units) OEM 3852002

21675 Washer
21675 Washer

11
P/N 21675
Washer (5 units) OEM 3852058

89224 hose
89224 hose

12
P/N 89224
Exhaust hose OEM 3852696

89222 OMC
89222 OMC

13
P/N 89222
Exhaust hose OEM 3852741

01068
01068

14
P/N 01068
Clamp OEM 3853860

01090 Clamp
01090 Clamp

15
P/N 01090
Clamp OEM 3852604



16
P/N 22379
Plug (1 unit)

21896 Plug
21896 Plug

17
P/N 21896
Plug (2 units) OEM 315713
