OMC parts drawing *Electric shift sterndrive

1972 to 1977 electric stern drive new or used lower units

  • New and used components
  • Years 1972 to 1977

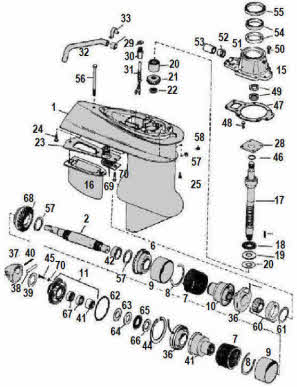

  • Numbered exploded view lower unit outdrive drawing

Exploded view stern-drive drawings
Search by part number or description here
outdrive parts 1972-1977

outdrive parts 1972-1977

Electric shift forward coil
Electric shift forward coil
Item 36
located between parts 10 and 60
P/N 382366-U Forward coil OEM 382366 $170.09

cone
cone

Item 37
P/N 379798-U Prop cone used OEM 379798 $39.09

drive pin
drive pin
Item 38
Drive pin OEM-310956 $9.09

thrust washer
thrust washer
Item 39
Prop thrust washer OEM 310594 $9.09 Call for availability


Item 40
Cotter pin P/N 310595

bh-1812
bh-1812
Item 41
P/N 22860 OEM bearing number BH1812 $27.09

313310
313310

Item 42
P/N 313310-U propeller shaft spacer OEM 313310 $27.95

1/4-28 N.F. 310412
1/4-28 N.F. 310412

Item 45
Screw 1/4-28 N.F. OEM 310412



Item 44

Spacer P/N 310428

33010 Swivel housing gasket 10 bolt
33010 Swivel housing gasket 10 bolt
Item 47

P/N 33010
Swivel housing 10 bolt gasket OEM-313368 $4.09

Gear head large o ring
Gear head large o ring

Item 62

86340
86340

Item 52-A

OEM 86340 for 6 and 8 cylinder engine this is the lower grommet

86330 upper water tube grommet
86330 upper water tube grommet

Item 52-B

Item 52-C

spacer 908889
spacer 908889

Item 53
Water tube spacer OEM 908889

86050
86050

Item 54

86040
86040

Item 55

86040 Swivel bearing retainer upper seal

85110 oil seals
85110 oil seals

Item 49 and 67

Rudder bolt 908702
Rudder bolt 908702

Item 56
Rudder bolt OEM 908702

31171 nylon gaskets
31171 nylon gaskets

Item 58

Ring 312007
Ring 312007

Item 57

Ring OEM 312007

Stainless steel cable retainer
Stainless steel cable retainer

Item 59

Stainless steel cable retainer OEM 310645



Item 61

Shims

screw
screw

Item 69

intake screen
intake screen

Item 70

Water intake screen OEM 909018

tubing
tubing

Tubing OEM 303806

Exhaust housing 1971-77 low profile
Exhaust housing 1971-77 low profile
P/N 22-135 $149.09

stringer prop
stringer prop

14" x 19 Pitch OMC Stringer pin drive propeller $300

electric shift stringer prop

electric shift stringer prop

14" x 18 pitch, blades has large nicks and will requires welding $55.95

Used omc intermediate housing
Used omc intermediate housing
Intermediate housing (1982 to 1985) for mechanical shift model in very good condition *Note - does not include tilt shaft with hammer couplings and tilt motor $450.00
sterndrive top cap
sterndrive top cap

switch
switch

P/N 77222 Switch includes wiring diagram $229.29
