Mercruiser Bravo gimbal housing drawing

Mercruiser gear housing parts for Bravo stern drive

  • Bravo Gimbal Housing

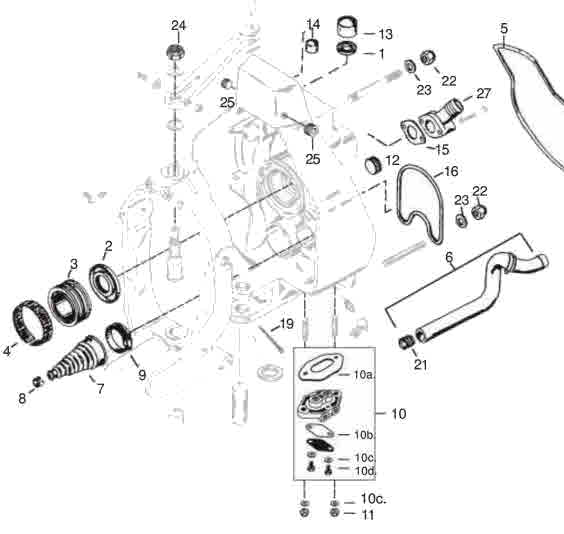

Bravo gimbal housing

Bravo Gimbal Housing

Description

Item 1
P/N 85390 OEM 26-41607-1 Oil Seal $00.00

Item 2
P/N 85910 OEM 26-88416 Oil Seal $00.00

Item 3
P/N 21905 OEM 30-8791 94A01 Gimbal Bearing $00.00

Item 4
P/N 21851 OEM 61075 Tolerance Ring $00.00

Item 5
P/N 86711 OEM 43713 Transom Seal $00.00

Item 6
P/N 47130 OEM 32-43437 Water Hose $00.00

Item 7
P/N 89080 OEM 74639A2 Shift Cable Bellow $00.00

Item 8
P/N 21790 OEM 54-38863 Clamp $00.00

Item 9
P/N 21791 OEM 54-815504320 Clamp $00.00

Item 10
P/N 32500 OEM 27-98823-1 Gasket $00.00

Item 11
P/N 21970 OEM 98825A4 Connector $00.00

Item 12
P/N 05009 OEM 13-78968 Lock washer $00.00

Item 13
P/N 21180 OEM 11-826711-9 Locknut $00.00

Item 14
P/N 21896 OEM 22-42861-1 Plug $00.00

Item 15
P/N 21694 OEM 23-98357-1 Bushing - Lower $00.00

Item 16
P/N 21692 OEM 23-98356 Bushing - Upper $00.00

Item 17
P/N 33000 OEM 27-44108-1 Gasket $00.00

Item 18
P/N 86217 OEM 41802 Seal $00.00

Item 19
P/N 12713 OEM 82163101 Anode $00.00

Item 20
P/N 85656 OEM 12077 Seal

Item 21
P/N 32160 OEM 27-99506-1 Gasket $00.00

Item 22
P/N 22147 OEM 18-54929 1 Cotter Pin $00.00

Item 23
P/N 16005 OEM 22-88847A1 Plug Kit $00.00

Item 24
P/N 47133 OEM 41674 insert and Driver $00.00

Item 25
P/N 21170 OEM 11-859116 Locknut $00.00

Item 26
P/N 28420 OEM 12-45176 Washer $00.00

Item 27
P/N 2713
OEM 82163101 Aluminum Anode Kit $00.00
