OMC Cobra upper gearcase repair on boat *See video

On boat sterndrive repair video, tool required
upper gearcase water pump adapter removal

  • Watch how our tech removes the Cobra upper gear-case water pump adapter and seals from sterndrive with out removing outdrive from boat
  • Includes step by step video instructions on how to properly remove adapter
  • Exploded view sterndrive (upper gearcase drawings)
  • OMC Cobra repair how to remove lower unit - PART 1

Cobra outdrive for repair
Cobra outdrive for repair

87654 Seal kit
87654 Seal kit

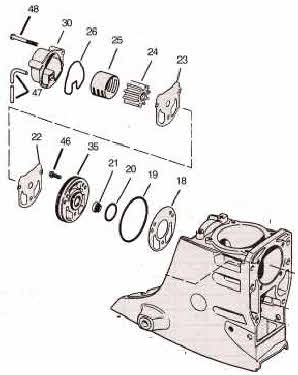

OMC Cobra water pump repair parts

OMC Cobra water pump repair parts

86610 Oil seal
86610 Oil seal

Seal installed 2
Seal installed 2

Install seal
Install seal

680 Loctite installed seal area
680 Loctite installed seal area

Modified water pump adapter

Modified water pump adapter


Modified water pump adapter with seal

Adaptor before and after
Adaptor before and after

3/8 Bolts

3/8 Bolts


1/4 X 1 inch pin
1/4 X 1 inch pin

3/8-16 N.C. tap
3/8-16 N.C. tap

3/8 and 9/16 sockets required
3/8 and 9/16 sockets required
