OMC sea drive repair parts *Seal kit *Tools

Sea drive seal kit, Loctite compounds and repair tools

OMC Sea drive bearing carrier removed
with out bearing carrier puller

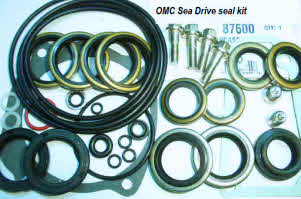

OMC Sea Drive seal kit years 1982-1990

1.8 liter sea drive years 1985 to 1990
1.8 liter sea drive year 1987
2.0 liter sea drive years 1988 to 1990
2.5 liter sea drive years 1984 and 1985
2.6 liter years 1984, 1985 and 1986
2.7 liter sea drive year 1987
3.0 liter years 1988, 1989 and 1990
3.6 liter sea drive years 1987
4.0 liter sea drive years 1989 and 1990

Please click on picture for more information
P/N 87600 $57.95 OEM P/N 5000411

pressure vacuum test

Tools for pressure testing that can be put together from parts available at most car parts stores.

They are vacuum & fuel pressure gauge with 3 way tee. Hand air pump for 8 to 12 P.S.I. max. Oil fill screw 3/8 inch boat lower unit oil pump.

When pressure testing sterndrives electric, 400 and 800 series lower units slip a 5/8 hose by 6 foot hose over the end of the shift wire to stop air that would leak from shift cable end.

90095 Johnson outboard bearing carrier puller
90095 bearing carrier puller
P/N 90095 Bearing carrier puller $82.95
Internal 3 inch X 12.5 long
Internal 3 inch X 12.5 long

P/N 22-26 Internal 3 inch snap ring installation or removal tool $14.95

90350
90350 Tool holds bearing carrier shaft when installing gears
P/N 90350 Drive shaft adapter for Cobra lower unit and stringer upper gear case. OEM 314438 $96.95

90150 gear bearing puller
90150 gear bearing puller
P/N 90150 5" Universal puller plate that pulls gears and bearings OEM 91-37241 $119.95

90340 Pinion nut adaptor end view holding nut in place
90340 Pinion nut adaptor end view holding nut in place
90350
90350
P/N 90340 Pinion nut adaptor kit. This tool holds drive shaft nut for removal of pinion gear and drive shaft nut. $173.95

90295 Bearing removal and installation tool

90295 Bearing removal and installation tool

P/N 90295 Bearing removal and installation tools $85.95

90260
90260
P/N 90260 Installs pinion bearings in sterndrives $39.95

90270
P/N 90270 Removes pinion bearings from lower sterndrive $19.95

YF-6312 Outdrive Bearing race seal driver
YF-6312 Outdrive Bearing race seal driver
P/N YF 6312 Bearing race / seal drive set (9 pieces) $79.15

90280 puller rod
90280 puller rod
P/N 90280 Bearing bolt installer-remover OEM 91-31229 $28.95

OMC Cobra lower unit oil pump
Lower unit oil pump
P/N 401-11245-1 Oil pump $12.95

Oil seal remover
Seal remover

Seal remover tool $10.00

680 Loctite 10 ml
680 Loctite 10 ml
P/N 680 Loctite retaining compound 3.4 oz or (10 ml.) use on outside of new seals being installed

* Note Loctite blue and red that is used for nut and bolts will not work due to lower unit oil compounds $29.89

Evinrude Johnson gasket sealing compound
Evinrude Johnson gasket sealing compound

P/N 508235 Evinrude Johnson gasket sealing compound is for use on new application parts only $19.15

327361 Gel sealant
327361 Gel-2 sealant

P/N 327361
OMC / Johnson System matched - Gel sealant 2 (seals metal to metal surfaces). 1.69 oz. or 50 ml. $14.95

60905 Loctite
60905 Loctite

P/N 60905 Loctite 609 retaining compound. 0.02 oz. or 0.5 ml. Can be used for 8 to 12 seals. $8.15
