Mercruiser trim cylinders and application chart

Complete power trim cylinder hose assembly OEM 219880 is used for both port and starboard replaces Mercury OEM 45706A14 Hoses for Mercruiser with 4 cylinder models, 120, 140 and 470 years 1970-1982 with serial numbers 4208730 - 6225575 Power trim cylinder works with all 165 models Power trim cylinder works with V8 models: 888, 225, 233, 898, 228, 250 and 260 years 1971-1982 with serial numbers 3106717 - 6225576

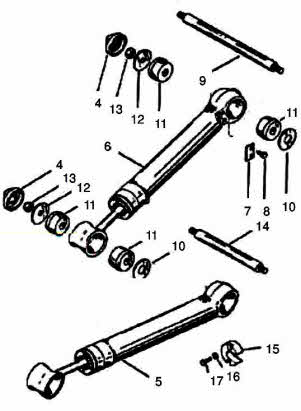

21980 Glm aftermarket replacement cylinder	P/N 21980 Hydraulic trim cylinder assembly used for port and starboard replaces OEM 45706A14 $399.99 P/N 87410 OEM 25-60342A2 Power trim cylinder seal kit with inner tube Includes part numbers 1-9: P/N 81109, 81169 and 82129 o rings P/N 41170 Quad ring P/N 07400 Washer P/N 21677 Seal washer P/N 41172 Rod scraper P/N 87411 Stainless steel inner tube P/N 87412 OEM 45522A3 Power trim cylinder rebuild kit Includes part numbers 1-9 and 12-22: P/N 81109, 82109, 81169 and 82129 O rings P/N 41170 Quad ring P/N 07400 Washer P/N 21677 Seal washer P/N 41172 Rod scraper P/N 87411 Inner tube P/N 22354 Bolt P/N 21668 Plain washer P/N 02195 Shim washer P/N 02196 Springs P/N 02197 Guide P/N 26384 Steel balls P/N 02199 and 02190 Shock piston (impact and return) P/N 26386 Spring P/N 02187 Guide P/N 21930 OEM 77442A1 Trim cylinder shell (includes empty cylinder housing and end cap) P/N 21940 OEM 45726 Trim cylinder bearing 120-260 trim cylinder layout look here
18-2103 Trim cylinder hose	Click on photo for hydraulic trim cylinder hose lines and bushing kits with pins 18-2126 Tubing - Replaces 32-58432A2 18-2108 44 inch Trim hose - Replaces 32-59841 18-2109 Hose - Replaces 32-59842 18-2103 Straight line - Replaces 32-86036 21980 Hydraulic trim cylinder assembly (used for port and starboard) - Replaces 45706A14 26310 Rubber bushing. Replaces 23-89574 21390 Bushing kit with pin for rear 21310 Bushing kit with pin for front 87410 Cylinder sealing kit includes o rings and replacement inner tube. 1970 - 1982 models, serial numbers 2763442 - 6225576. Replaces 25-60342A2

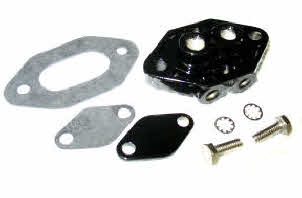

21970 Mercruiser trim cylinder to connector kit	P/N 21970 Mercruiser trim cylinder to connector kit $69.99
Trim sender	18-7633 Mercruiser limit and trim sender switch kit OEM 805320A03 compatible with all MC-1, R, MR, Alpha 1, Alpha 1 Gen 2 and Bravo drives $119.95

87410	1 - 9 P/N 87410 OEM 25-60342A2 Power trim cylinder seal kit with inner tube $89.89 Includes part numbers 1 - 9: P/N 81109, 82109, 81169 and 82129 o-rings P/N 41170 Quad ring P/N 07400 Washer P/N 21677 Seal washer P/N 41172 Rod scraper P/N 87411 Inner tube
87412 Rebuild Kit 45522A3	12 - 22 P/N 87412 OEM 45522A3 Power trim cylinder rebuild kit $199.89 Includes part numbers 1 - 9, and 12 - 22: P/N 81109, 82109, 81169 and 82129 ;O-rings P/N 41170 Quad ring P/N 07400 Washer P/N 21677 Seal washer P/N 41172 Rod scraper P/N 87411 Inner tube P/N 22354 Bolt P/N 21668 Plain washer P/N 02195 Shim washer P/N 02196 Springs P/N 02197 Guide P/N 26384 Steel balls P/N 02199 and 02190 Shock piston (impact and return) P/N 26386 Spring P/N 02187 Guide
21930 Housing 77442A1	23 P/N 21930 OEM 77442A1 Cylinder shell (includes empty cylinder housing and end cap) $199.89
21940 Bearing 45726	25 P/N 21940 OEM 45726 Trim cylinder bearing $22.95
21310 Anchor Kit	6C 21310 Bushing kit with pin (for front). Replaces N/A $53.89
21390 Pin Kit	6B 21390 Bushing kit with pin (for rear). Replaces N/A $74.89

	O Ring Kit	Cylinder Port	Cylinder Starboard	Outer housing Port	Outer housing Starboard
120 / 140 years 1970 to 1982 S/N 2791957-6225576 470 / 485 years 1976 to 1982 S/N 4208730-6225575 165 years 1970 to 1981 S/N 2763442-4890459 888 years 1971 to 1977 S/N 3106717 and up 225 / 233 years 1974 to 1977 S/N 3856268 and up 898 / 228 years 1977 to 1982 S/N 4782330-6225576 250 / 260 years 1977 to 1982 S/N 4791300-6225576	87410	21980	21980	21930	21930
R/MR/Alpha One with tube length of 15-9/16" long Years 1983 to 1990 S/N 6225577 and up	87400	26410	26400	26411	26401
R/MR/Alpha One with tube length of 16-3/16" long Years 1983 to 1990 S/N 6225577 and up	87400	26410	26400	26511	28501
Bravo Years 1988 to 1995 S/N 6225577 and up	87400	26510	26500	26511	28501
