GLM Marine aftermarket OMC Cobra stern-drive u-joints, yoke, socket and drive shaft

  • OMC Cobra stern drive upper gear-case complete u-joint assembly with yoke, drive shaft and socket.
  • Includes straight and 90 degree nipples. Most marine applications use the 90 degree nipple.
  • Lithium grease installed. Comes with 4 clips ready for installation.
  • OEM numbers are 3850812, 75832T and 75832T-1.

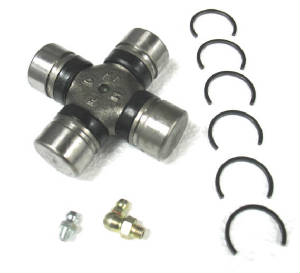

28030 U joint OEM 3850812
28030 U joint OEM 3850812

P/N 28030 GLM marine aftermarket Cobra outdrive u-joint. OEM 3850812, 75832T, 75832T-1 $45.29

28320 U-joint water pump shaft
28320 U-joint water pump shaft

P/N 28320 Yoke water pump shaft. OEM 984264 $245.29

28100 U-joint socket OMC Cobra years 1986-1998
28100 U-joint socket OMC Cobra years 1986-1998

P/N 28100 OMC Cobra socket for years 1986 thru 1998. OEM 912213 $42.29

28315 Long yoke
28315 Long yoke

P/N 28315 Yoke drive shaft. OEM 912212 $102.29

28317 U-joint yoke SX 1994-1998 OEM 3850814
28317 U-joint yoke SX 1994-1998 OEM 3850814

P/N 28317 Cobra SX yoke years 1994 thru 1998. OEM 3850814 $188.29

28318 OMC Cobra SX u-joint assembly
28318 OMC Cobra SX u-joint assembly

P/N 28318 OMC Cobra SX u-joint assembly. OEM 3852384 $324.29

Replacement 21-16 gear set kit with u-joint shaft
Replacement 21-16 gear set kit with u-joint shaft

P/N 22522 Replacement 21-16 gear set kit with shaft and bearings. OEM 983917 $1199.29

21962 OMC transom kit
21962 OMC transom kit

P/N 21962 OMC Cobra bellows transom service kit. $140.29

89200 U-Joint-bellow
89200 U-Joint-bellow

P/N 89200 U-Joint bellow OEM 3854127 $36.29

01090 U-joint bellow clamp
01090 U-joint bellow clamp

P/N 01090 Bellow clamp OEM 3852604 $4.29

28325 Cobra U joint assembly
28325 Cobra U joint assembly

P/N 28325 Yoke and water pump shaft assembly. $471.29


OMC Cobra u joint assembly drawing
OMC Cobra u joint assembly drawing
