Yamaha drawing 9.9 -15 hp. years 1984-2006

P/N 12278 fits 9.9 hp. (1984-1995), F-9.9 (1986-1995), FT-9.9 (1985-1990), I-9.9 (1991-1996) P/N 12281 fits F-9.9 (1997-2003), T-9.9 (1997-1999, 2001-2003), F-9.9 (2004), T-9.9 (2004)

  1. • Included in kit No. 12278
  2. + Included in kit No. 12281
  3. • Included in assembly No. 12448
  4. - Included in kit No. 87843

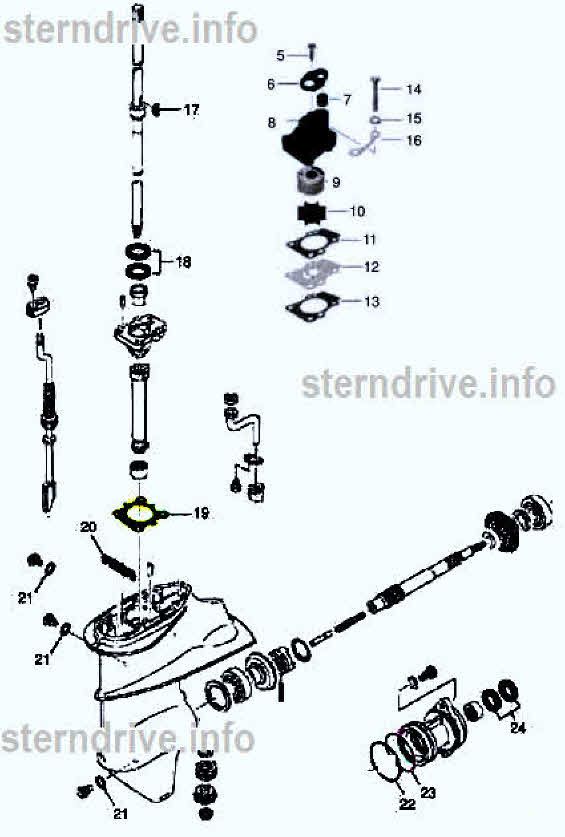

Yamaha outboard parts 9 & 15 hp years 1984-2006

Yamaha outboard parts 9 & 15 hp years 1984-2006

12278

12278

Item 1
P/N 12278 OEM 682-W0078-A1 Water Pump Kit w/o Housing with Bolts (*see notes above) $35.29

12281 Yamaha outboard 9.9-15 hp

12281 Yamaha outboard 9.9-15 hp

Item 2
P/N 12281

682-W0078-A3-00 Water pump kit with housing with bolts (*see notes above)



Item 3
P/N 12448

682-44300-01-00 Water Pump Housing Assembly

GLM Marine 87843
GLM Marine 87843
Item 4



Item 5
P/N 23238 97780-40112-00 Screw (2)



Item 6 •
P/N 12437 OEM 682-44312-00-00 Cover



Item 7
P/N 12877

682-44365-00 Water Seal Damper



Item 8
P/N 12449 Water Pump Housing Only



Item 9
P/N 12876

682-44322-00 Pump Cup

89880 Impeller
89880 Impeller
Item 10



Item 11 •+-
P/N 38107

682-44314-A0 Gasket, Water Pump



Item 12 •+
P/N 12515

682-44323-00 Wear Plate



Item 13 •+-
P/N 38107

682-44315-A0 Gasket Water Pump



Item 14 •
P/N 22428

97-095-06040 Bolt (4)



Item 15 •
P/N 21490

OEM 92990-06600-00 Washer (4)



Item 16 •
P/N 12495

682-44328-00-00 Plate, Water Pump Housing



Item 17 ++
P/N 89587

90280-03024 Key, woodruff



Item 18 -
P/N 85661

93102-20484 Oil Seal, Water Pump Base



Item 19 -
P/N 36930 OEM 683-45315-AO Gasket, Water Pump Base



Item 20 -
P/N 85622 682-45375-01 Damper Seal



Item 21 -
P/N 38015 OEM 90430-08020 Gasket, Drain Fill (3)



Item 22 -
P/N 84340

93210-74M68 0 ring, Bearing Carrier



Item 23 -
P/N 84335

9210-74316 0 ring, Bearing Carrier



Item 24 -
P/N 85660

93101-17054 Oil Seal, Prop Shaft (2)
