Yamaha outboard 300 and 350 hp. V8 engines

Fits models 300 and 350 hp. V8 engines

• Included in Kit P/N 12248
+ Included in Kit P/N 12089

  • Exploded view lower unit drawings
    Search by part number or description here

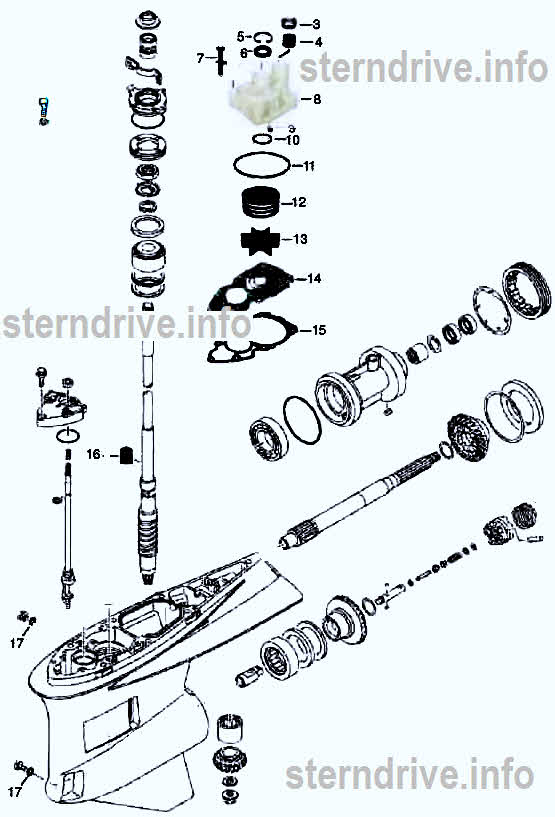

Yamaha outboard drawing 300 and 350 hp.

Yamaha outboard drawing 300 and 350 hp.

12248

12248

Item 1

P/N 12248 OEM N/A Complete Water Pump Kit
12089

12089

Item 2

P/N 12089 OEM 6AW-W0078-00 Water Pump Kit with out housing


Item 3 •+

P/N 12863 OEM 6AW-4431 2-00-00 Cover, Water Pump Housing


Item 4 •+

P/N 12867 OEM 6AW-44365-00-00 Damper


Item 5 •+

P/N 21779 OEM 93420-35085-00 Clip


Item 6 •+

P/N 85233 OEM 93109-24001-00 Oil Seal


Item 7 •+

P/N 22504 OEM 90119-08M14-00 Bolt with Washer


Item 8 • P/N 12402 OEM 6AW-44311-00-00 Water Pump Housing


Item 9 •+

P/N 12808 OEM 93606-12019-00 Pin, Dowel


Item 10 •+ P/N 84300 OEM 93210-37160-00 0-ring


Item 11 •+

P/N 45330 OEM 93210-94003-00 0-ring


Item 12 •+

P/N 12879 OEM 6AW-44322-00-00 Pump Cup


Item 13 •+

P/N 89960 OEM 6AW-44352-00-00 Impeller


Item 14 •+

P/N 12528 OEM 6AW-44323-00-00 Wear Plate


Item 15 ++

P/N 38050 OEM 6AW-44315-00-00 Gasket, Water Pump


Item 16 •+

P/N 89586 OEM 6AW-44336-00-00 Key


Item 17

P/N 38015 OEM 90430-08020-00 Gasket, Drain Fill
