Yamaha outboard drawing 9.9-15 hp. years 1996-2006

Fits Models: F6 (2001-2006), F8 (2001-2006), T8 (2001-2006) 9.9 (1996-2006), F9.9 (2003, 2006), T9.9 (2003, 2006), 15 (1996-2001, 2003, 2006), F-15 (1998-2006)

  • Power-head gaskets, lower unit oil seal, o rings and gaskets.
  • Water pump kits include impeller and key.
  • Magnetic oil pump screw and seal are all so listed

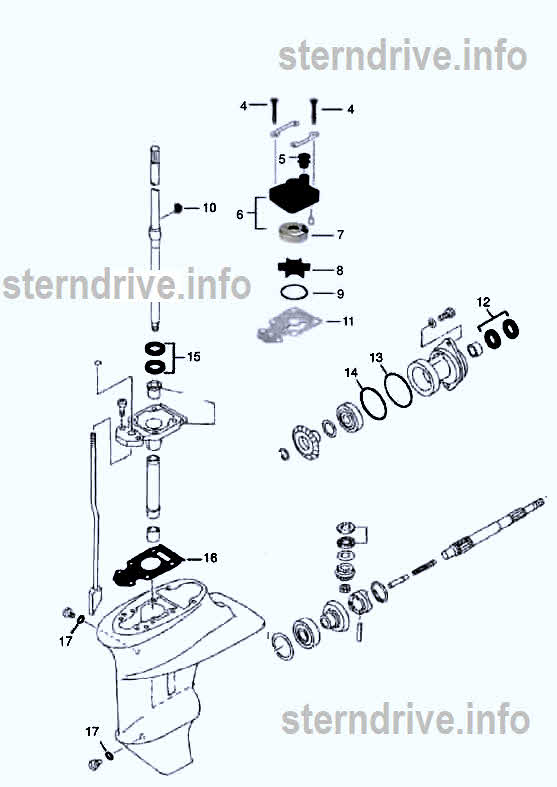

9.9-15 hp years 1996 to 2006

9.9-15 hp years 1996 to 2006

12087 outboard unit
12087 outboard unit

Item 1

P/N 12087 OEM 63V-W0078.01 + 63V-44301-00.00 Complete Water Pump

12066 Yamaha water pump kit without housing
12066 Water pump

Item 2

P/N 12066 OEM 63V-W0078-01 Water Pump w/o Housing

GLM Marine 87843
GLM Marine 87843

Item 3

Reference:
63V-W0001-22-00
66M-W0001-20-00
683-W0001-Cl-00
63V-W0001-21-00
6G8-W0001-00-00
6G9-W0001-00-00
6G8-W0001-C2-00
6G9-W0001-C2-00
6G8-W0001-C4-00
6G9-W0001-C4-00
6G8-W0001-C6-00
6G9-W0001-C6-00

Please note: This is not an exact OEM replacement kit. We have improved ours by omitting gaskets not necessary to seal the lower unit. This is designed specifically to seal the lower units on all Yamaha 9.9 or 15 hp. OEM numbers for model reference only.



Item 4

P/N 22502 OEM 97080-08045 Bolt (4) Included in set P/N 12087 and P/N 12066



Item 5

P/N 12865 OEM 647-44366-00 Water Seal Damper included in set P/N 12087 and P/N 12066



Item 6P/N 12445 OEM 63V-44301-00-00 Water Pump Housing included in set P/N 12087



Item 7

P/N 12809 OEM 63V-44322-00 Pump Cup Included in set P/N 12087 and P/N 12066

89619
89619

Item 8

82250 O ring OEM 25-30224
82250 O ring OEM 25-30224

Item 9

P/N 82250 93210-44704-00 0 ring included P/N 12087 and P/N 12066



Item 10

P/N 89589 OEM 664-44338-00 Key, woodruff included in kit P/N 12087 and P/N 12066



Item 11

P/N 12517 OEM 682-44323-00 Wear Plate included in unit P/N 12087 and P/N 12066



Item 12

P/N 85660 OEM 93101-17054 Oil Seal, Prop Shaft (2) included in set P/N 87843



Item 13

P/N 84350 OEM 93210-56M80 O-Ring, Bearing Carrier included with unit P/N 87843



Item 14

P/N 84360 OEM 9321 0-57M09-00 O Ring, Bearing Carrier included in set P/N 87843



Item 15

P/N 85661 OEM 93102-20484 Oil Seal, Water Pump Base (2) included in kit P/N 87843



Item 16

P/N 38130 OEM 63V-45315-A0 Gasket, Water Pump included in kit P/N 87843



Item 17

P/N 38015 90430-08020 Gasket, Drain Fill (2) included in set P/N 87843
