Yamaha drawing *115 hp. *130 hp. Years 1997 to 2005

Yamaha lower unit outboard parts drawing 115 to 130 hp. with V4 engine years 1997 to 2005

  • Parts include power-head gaskets, lower unit oil seal, o rings and gaskets
  • Water pump kit parts including impeller and key.

For Models:

  • 115 hp. years 1997 to 2005
  • C 115 hp. years 1997 to 2000
  • S 115 hp. years 1997,1998 and 1999
  • S 130 hp. years 1997 and 1998

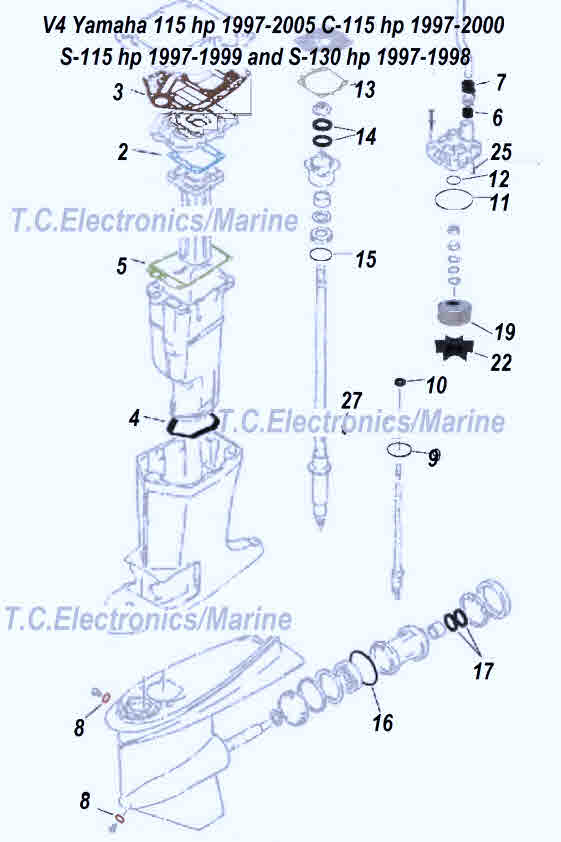

  • Exploded view lower unit search by part number or description here


V4 Yamaha C-115hp S-115hp S-130hp 1997-1998

87838 115hp and 130hp 6E5-W0001-F1 and 6E5-W0001-51

87838 115hp and 130hp 6E5-W0001-F1 and 6E5-W0001-51

Item 1
P/N 87838 Lower Unit seal kits OEM 6E5-W0001-F1-00



Item 2
P/N 38030
Gasket, Exhaust Manifold OEM 6E5-41134-A0-00



Item 3
P/N 38027
Gasket Upper Casing OEM 6G5-45114-A0-00



Item 4
P/N 38029
Gasket Muffler OEM 6E5-45123-00-00



Item 5
P/N 38028
Gasket Exhaust Manifold OEM 6E5-41135-A0-00





Item 6
P/N 38300
Damper Water Seal OEM 6E5-44365-00-00



Item 7
P/N 38301
Damper Water Seal OEM 6E5-44366-00-00



Item 8
P/N 38015
Gasket OEM 90430-08020-00



Item 9
P/N 84240
0-ring OEM 93210-58677-00



Item 10
P/N 85223
Oil seal OEM 93106-09014-00



Item 11
P/N 84295
0-ring OEM 93210-86M38-00



Item 12
P/N 84300
0-ring OEM 93210-37M67-00

38000 Water pump gasket
38000 Water pump gasket

Item 13
P/N 38000
Gasket water pump OEM 6E5-44315-A0-00



Item 14
P/N 85222
Oil seal OEM 93101-28M16-00



Item 15
P/N 84215
0-ring OEM 93210-54534-00



Item 16
P/N 84250
0-ring OEM 93210-86M39-00



Item 17
P/N 85221
Oil Seal OEM 93101-30M17-00

12286 Kit without pump housing
12286 Kit without pump housing

Item 18
P/N 12286
Water pump repair kit OEM 6N6-W0078-02-00

12870 Pump cup
12870 Pump cup

Item 19
P/N 12870
Pump cup OEM 61A-44322-01-00



Item 20
P/N 84295
0-ring OEM 93210-86M38-00



Item 21
P/N 84300
0-ring OEM 93210-37M67-00

89930 Yamaha impeller
89930 Yamaha impeller

Item 22
P/N 89930
Impeller OEM 6E544352-00-00

12522 Wear plate
12522 Wear plate

Item 23
P/N 12522
Outer Plate, Cartridge OEM 6E5-44323-00-00



Item 24
P/N 38000
Gasket, water pump OEM 6E5-44315-A0-00



Item 25
P/N 12808
Dowel pin OEM 93606-12019-00

22504 Bolts and washers 4 units
22504 Bolts and washers 4 units

Item 26
P/N 22504
Bolt, with washer OEM 90119-08M14-00

89588 Woodruff key half moon
89588 Woodruff key half moon

Item 27
P/N 89588
Woodruff key OEM 90280-04M05-00
