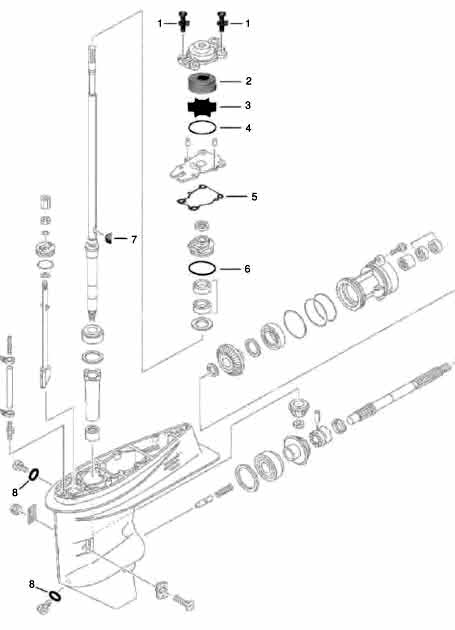

Yamaha lower unit drawing 30-40-50 hp.

Drawing for 30, 40 and 50 hp.

  • lower unit drawing 30-40-50 hp

Yamaha outboard 25-30-40 hp.
Yamaha outboard 25-30-40 hp.



Item 1

P/N 22429 90119-08M15-00 Bolt With Washers (2)


Item 2

P/N 12873 OEM 63D-44322-00-00 Pump Cup
89900 Impeller OEM 6H6-44352-02
89900 Impeller OEM 6H6-44352-02

Item 3

P/N 89900 6H4-44352-02-00 Impeller


Item 4

P/N 84305 93210-59MG7-00 O ring


Item 5

P/N 38008 63D-44316-00-00 Gasket, Water Pump


Item 6

P/N 84220 93210-48MG8-00 O ring


Item 7

P/N 89599 90280-03M03-00 Key, Woodruff


Item 8

P/N 38015 90430-08020-00 Gasket, Drain Fill
