Mercury outboard parts drawing 3 Liter 200 DFI

GLM aftermarket parts drawing for
3.0 Liter, 200 DFI and 225/250 EFI

  • 225 Horsepower with carburetor type, 225 and 250 horsepower EFI. lower unit pictures
  • Mercury outboard part drawing with reference numbers

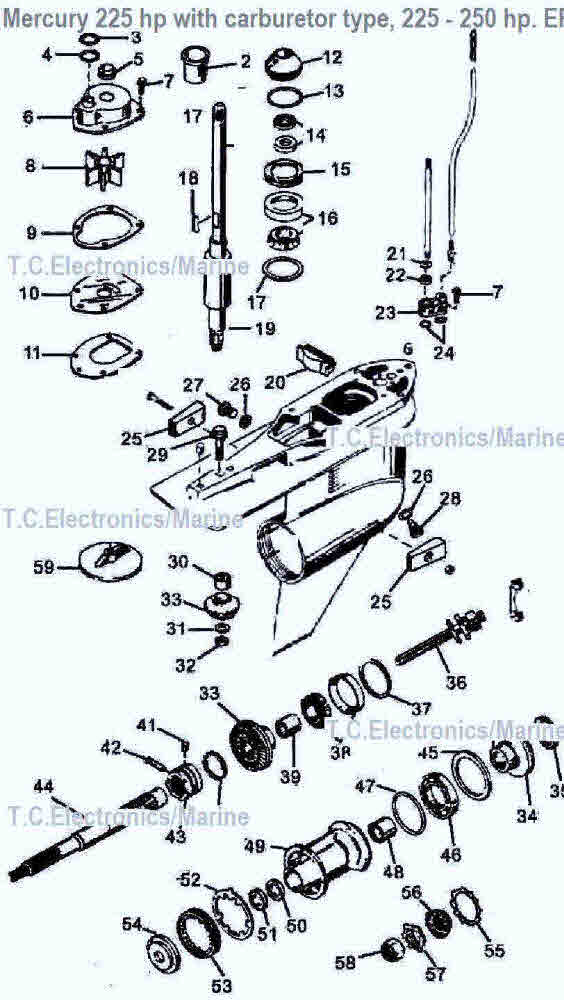

Mercury drawing 200-225-250 hp

Mercury outboard parts drawing 200-225-250 hp

Outboard parts description

12098

12098

Item A

P/N 12098 water pump kit OEM 817275A5 $110.99

12098

1998 V-200 DFI 3.0 liter
USA serial number OG590000 and up

1998 V-225 DFI
USA serial number OG590000 and up

12414 Water pump kit

12098 water pump kit

Item A

P/N 12414 is now P/N 12098 water pump kit OEM 817275Q5 $110.99

12414

1998 V-200 DFI 3.0 liter
USA serial number OG590000 and up

1998 V-225 DFI
USA serial number OG590000 and up



P/N 12414
V-6 200, 225, 250 hp.
OEM 817275T4
Sierra 18-3147

Included:
P/N 82210 O RING OEM 25-21836
P/N 82150 O RING OEM 25-35027
P/N 85590 FACE SEAL OEM 26-816575A2
P/N 12413 PUMP HOUSING OEM Not Sold Separately
P/N 89630 IMPELLER OEM 47-43026T2
P/N 11071 KEY OEM: 28-43037
P/N 31240 GASKET OEM 27-817277-1
P/N 12500 WEAR PLATE OEM 817276-1
P/N 30090 GASKET OEM 27-43033-1
P/N 12341 PUMP BASE OEM 807929A1
P/N 31170 GASKET OEM 12-19183-3 Kit Contains: 2
P/N 82115 O RING OEM 25-21836 Kit Contains: 2

12096 Mercury Mariner outboard V 200 E.F.I. 3.0 liter

12096 Mercury Mariner 2 Cycle

Item A

P/N 12096 Mercury Mariner 2 Cycle water pump kit OEM $126.95

12096

1998 V-200 DFI 3.0 liter
USA serial number OG590000 and up

1998 V-225 DFI
USA serial number OG590000 and up


87512 outboard seal kit

Item A

P/N 87512 seal kit OEM 26-816575A4 $45.99

V-200 hp. DFI 3.0 liter
USA. OG386496 up

V-225 hp. 3.0 liter with C-2 Casting
USA. OD280813 up

V-225 hp. 3.0 liter Sea Pro Marathon
USA. OG245605 up

V-225 hp. EFI 3.0 liter
USA. OG129222 up

V-225 hp. DFI 3.0 liter
USA. OG590000 up

V-250 hp. EFI 3.0 liter
USA. OG129222 up

87513 outboard seal kit

87513 outboard seal kit

Item A

P/N 87513 seal kit OEM 26-816575A5 $39.99

V-200 hp. DFI 3.0 liter
USA. OG386496 up

V-225 hp. 3.0 liter with C-2 Casting
USA. OD280813 up

V-225 hp. 3.0 liter Sea Pro Marathon
USA. OG245605 up

V-225 hp. EFI 3.0 liter
USA. OG129222 up

V-225 hp. DFI 3.0 liter
USA. OG590000 up

V-250 hp. EFI 3.0 liter
USA. OG129222 up

12670 aluminum trim tab anode
12670 aluminum trim tab anode

Item 1

P/N 12670 Anode OEM 31640Q4 $14.99


Item 2
P/N 12838
Coupling assembly OEM 832942A1


Item 3

P/N 82150 O-rings, 5 units. OEM 25-35027 $4.95

82110 O Ring
82110 O Ring

Item 4

P/N 82110 O-rings, 5 units. OEM 25-21836 $4.89

85590 Face seal
85590 Face seal

Item 5

P/N 85590 Face seal OEM 26-816575A2 $4.95

12415
12415

Item 6

P/N 12415 Water pump assembly OEM 31640Q4 $71.95

12834 Screw
12834 Screw

Item 7

P/N 12834 Screw OEM 10-19937 $4.95

89630 Impeller
89630 Impeller

Item 8

P/N 89630 Impeller OEM 47-43026T2 $19.99

31240 outboard gasket

31240 outboard gasket

Item 9

P/N 31240 Gasket OEM 27-817277-1 $4.95

12500 Wear plate
12500 Wear plate

Item 10

P/N 12500 Wear plate OEM 817276-1 $6.95

30090 outboard gasket

30090 outboard gasket

Item 11
P/N 30090
Gasket OEM 27-43033-1 $4.95

12341 pump base
12341 pump base

Item 12

P/N 12341 Pump base OEM 807929A1 $22.95

81390 O Rings
81390 O Rings

Item 13

P/N 81390 O-rings, 5 units. OEM 25-90011 $4.95

85011 Oil seal
85011 Oil seal

Item 14

P/N 85011 Oil seal OEM 26-66302 $8.95

23200 retainer
23200 retainer

Item 15

P/N 23200 Retainer OEM 824519-1 $4.95

11710

Item 33

P/N 11710 Forward pinion gear set 1.175 gear ratio 43-859321A3 $318.99

11092

P/N 11092 Pinion and forward gear set V6 ratio 1.62:1 $424.99

11720 Reverse gear OEM 43-859322A1
11720 Reverse gear OEM 43-859322A1

Item 34

P/N 11720 Reverse gear 1.175 gear ratio OEM 43-859322A1 $283.95

11013 reverse gear

Item 34
P/N 11013
Reverse gear V6 sea pro 1.62 ratio $250.95

31240 outboard gasket

Item 44

P/N 11155 Prop shaft OEM 44-850308 $399.99
